The Identification Zoo — mapping the supply, demand, and quality of causal identification in economics.

The Identification Zoo

Is the credibility revolution running out of credible variation?

This project maps the full supply chain of causal identification in empirical economics — from the natural experiments researchers exploit, to the causal claims they make, to the quality of the resulting evidence. It combines three public datasets:

Layer Dataset Coverage
Supply Oh’s Plausibly Exogenous Galore (1,667 papers) What specific instruments are used?
Demand Garg & Fetzer’s Causal Claims (46,645 papers, 1.2M edges) How many causal claims demand identification?
Quality Brodeur et al.’s test statistics (42,526 z-stats) How healthy is the resulting evidence?

The core question: demand for causal identification has exploded since 1990 — but has the supply of genuinely novel exogenous variation kept pace, or has the profession converged on a narrow portfolio of recycled instruments?

Part 1: The Identification Scissors

The “killer chart” of the project. The blue line tracks the demand for IV identification (share of causal claims using instrumental variables, from Garg & Fetzer 2025). The red line tracks the supply-side concentration (HHI of instrument categories, from Oh’s Plausibly Exogenous).

The Identification Scissors: demand for IV rising while instruments concentrate
Figure 1. The Identification Scissors. IV demand (blue, left axis) rose from 2% to 8% of causal claims between 1990 and 2023. After an initial diversification phase (HHI falling from 0.34 to 0.16), instrument concentration has crept back upward since 2018 --- the hourglass pattern.

Key finding: The scissors opened in two phases. First, a diversification phase (2000–2015) where new instrument categories were discovered and HHI fell. Then a re-concentration phase (2018–present) where the portfolio narrowed again even as demand plateaued — fewer new ideas entering, more recycling of existing ones.

Part 2: Taxonomy of Identification Strategies

I classify 1,667 papers from Oh’s database into 15 instrument categories using keyword matching on the “source of exogenous variation” field. The distribution reveals a steep power law: Policy Reform / Law Change dominates (381 papers), followed by Timing / Event Shock (171) and Lottery / Random Assignment (100).

Taxonomy of identification strategies showing instrument category frequencies

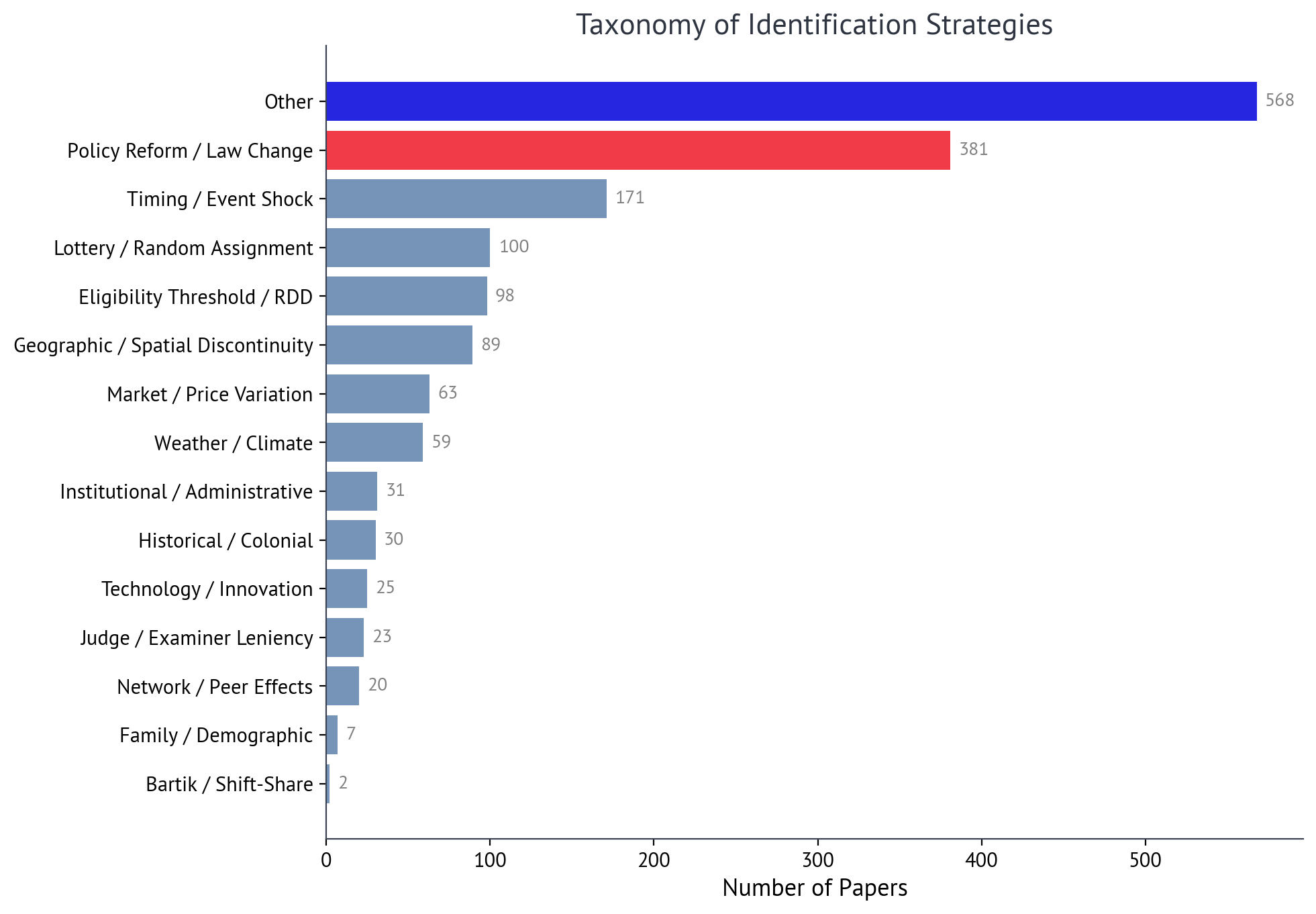

Figure 2. Taxonomy of identification strategies. The 'Other' category (568) captures idiosyncratic one-off instruments --- each clever but unreplicable. Policy reforms are the dominant workhorse.

The large “Other” category is itself informative: 34% of instruments are so idiosyncratic they resist classification. These are individually clever natural experiments but collectively represent fragile knowledge — causal claims that rest on unreplicable sources of variation.

Part 3: Is the Portfolio Concentrating?

HHI concentration and discovery rate over time

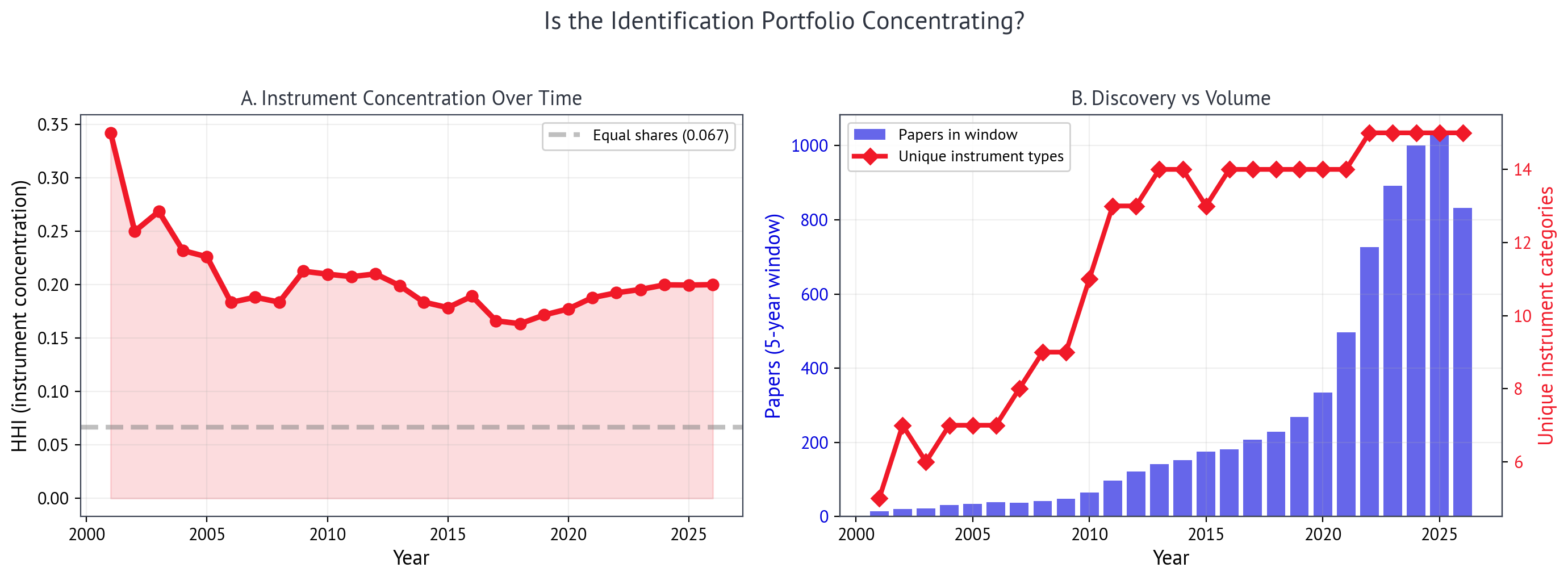

Figure 3. Panel A: Instrument HHI over time shows a U-shape --- initial diversification (2001--2017) followed by re-concentration. Panel B: While paper volume exploded 60x (15 to 1,032 papers per 5-year window), the number of unique instrument categories plateaued at 15 by 2014.

The saturation finding: Panel B is perhaps the most striking result. The number of unique instrument categories flatlined at 15 around 2014 despite a massive increase in papers. The identification frontier is not expanding — the same 15 types of exogenous variation serve an ever-growing body of empirical work.

Part 4: The Credibility Revolution in Methods

Using Garg & Fetzer’s (2025) classification of 46,645 NBER and CEPR working papers, the stacked area chart shows how causal methods grew from 15% to 38% of all economics research between 1980 and 2023.

Stacked area chart of causal method adoption 1980-2023

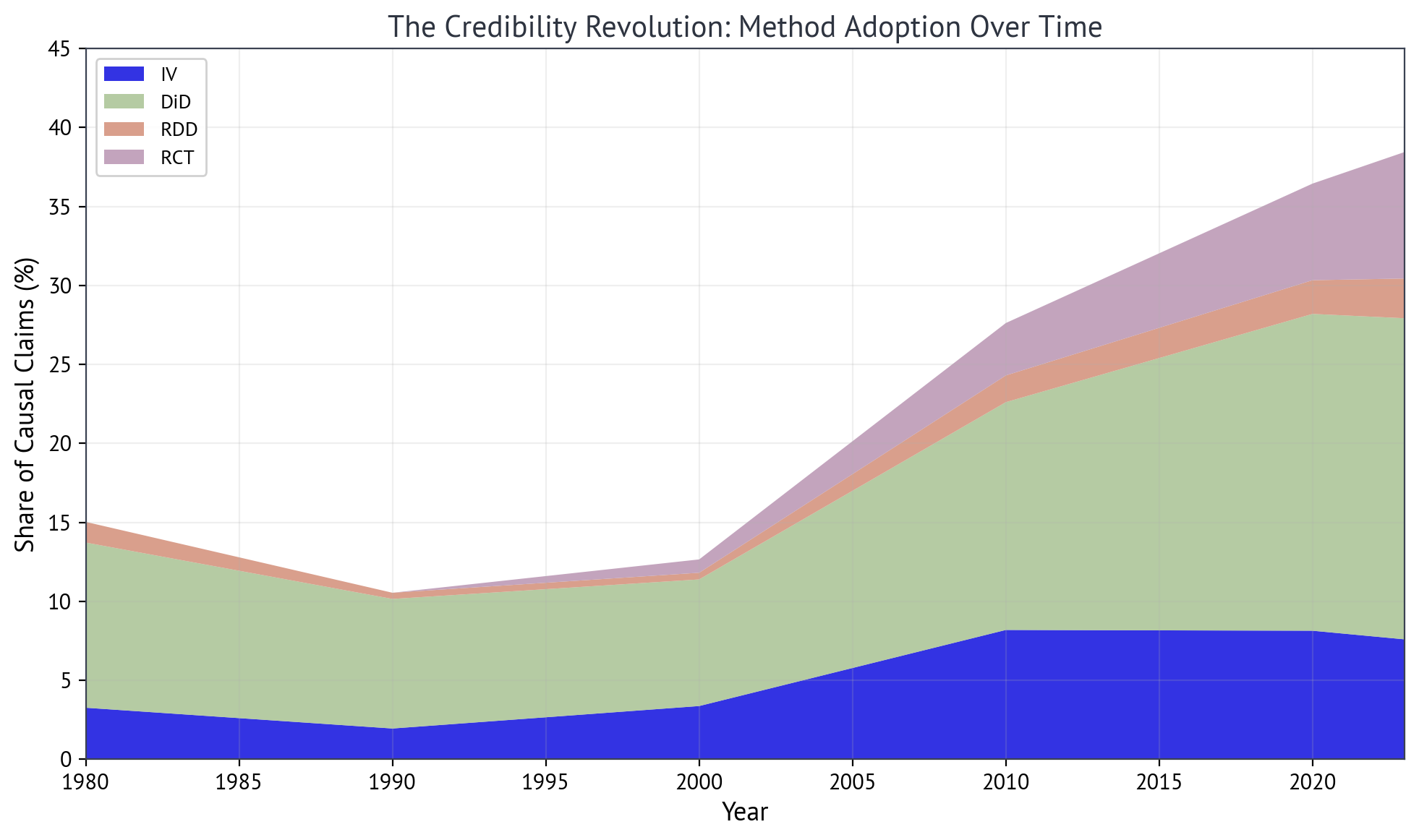

Figure 4. The credibility revolution visualised. IV (blue), DID (green), RDD (orange), and RCT (purple) grew from 15% to 38% of working papers. DID is the biggest winner, rising from 8% to 20%. IV plateaued at ~8% after 2010.

Note that IV plateaued around 2010 at ~8% while DID surged to 20%. This is consistent with the identification scissors: as novel instruments became harder to find, researchers shifted toward difference-in-differences designs that require policy variation rather than classical instruments.

Part 5: Instrument Specialisation by Field

Applying the economic complexity framework to identification strategies. Instead of countries \(\times\) products, we have outcome fields \(\times\) instrument categories. The Revealed Comparative Advantage (RCA) measures which fields specialise in which instruments:

\[\text{RCA}_{f,i} = \frac{N_{f,i}/N_{f,\cdot}}{N_{\cdot,i}/N_{\cdot,\cdot}}\]
RCA heatmap of instrument specialisation by outcome field

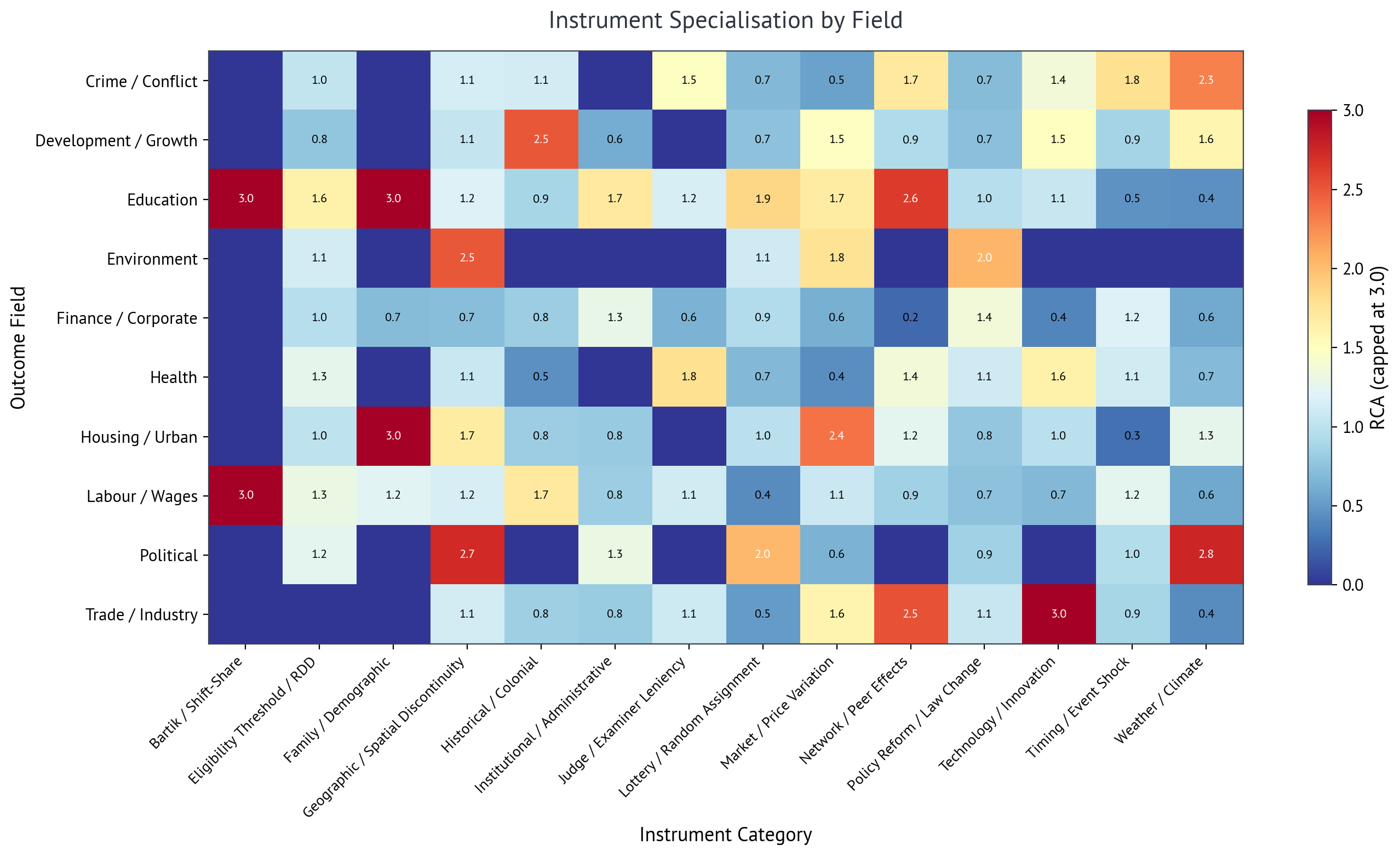

Figure 5. Instrument specialisation by field (RCA, capped at 3.0). Dark red cells indicate strong specialisation. Labour economics specialises in Bartik/shift-share (RCA=3.0) and lotteries (1.7). Education relies on family/demographic instruments (3.0) and network/peer effects (2.6). Crime/conflict specialises in weather (2.3). Political economy in geographic discontinuities (2.7).

Field-specific instrument monocultures:

  • Labour: Bartik/shift-share instruments (RCA = 3.0) — immigration enclave instruments dominate
  • Education: Family/demographic (3.0) and network/peer effects (2.6) — twin studies, birth order, roommate assignment
  • Crime: Weather/climate (2.3) — rain reduces crime, heat increases it
  • Housing: Geographic/spatial discontinuity (3.0) — boundary designs at school district or zoning borders
  • Political economy: Geographic discontinuity (2.7) and timing/event shocks (2.8) — close elections, redistricting

Part 6: The Instrument Space

The instrument space network connects instrument categories that tend to co-occur across outcome fields. Instruments that serve the same fields are pulled closer together. Node size reflects frequency of use; edge thickness reflects co-occurrence proximity.

Network graph of the instrument space showing co-occurrence relationships

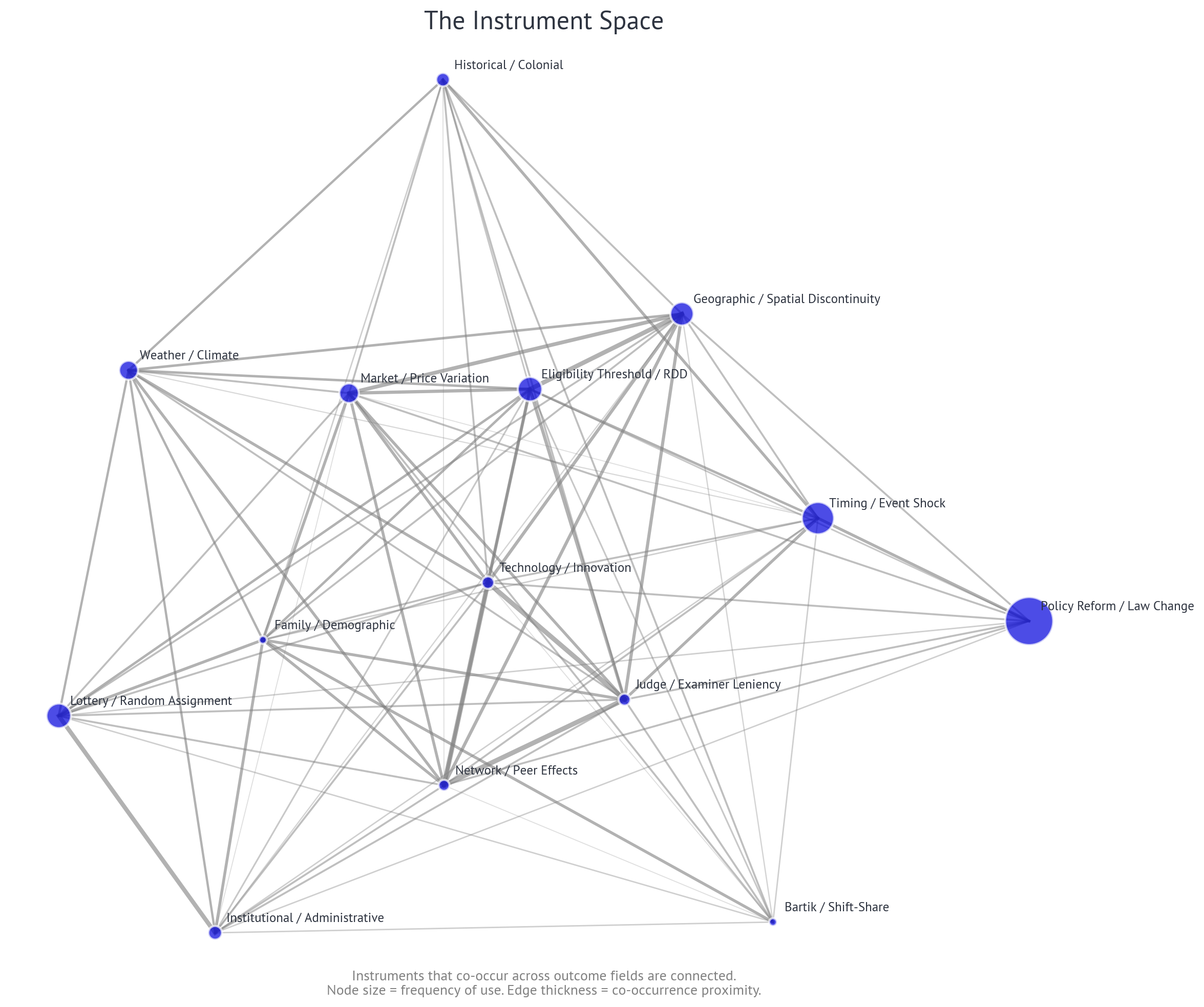

Figure 6. The Instrument Space. Policy Reform / Law Change is the dominant hub (largest node), connected to nearly all other instrument types. Peripheral instruments (Bartik, Family/Demographic) serve narrow fields. The core cluster --- Eligibility Threshold, Market/Price, Geographic --- co-occurs across many fields.

The network reveals a core-periphery structure:

  • Core: Policy reforms, eligibility thresholds, geographic discontinuities, and market/price variation are densely interconnected — these instruments serve many fields
  • Periphery: Bartik/shift-share, family/demographic, and historical/colonial instruments are field-specific — they serve labour, education, and development economics respectively, with weak connections elsewhere

This is the fragile knowledge map: outcome domains served only by peripheral instruments have thin identification portfolios.

Part 7: Evidence Quality by Method

Using Brodeur, Cook & Heyes (2020), we plot the distribution of z-statistics across 42,526 hypothesis tests by method. Under the null of no p-hacking, z-statistics should follow a smooth distribution. Bunching just above \(z = 1.96\) (the 5% significance threshold) suggests specification searching.

Test statistic distributions by method showing evidence of p-hacking in IV and DID
Figure 7. Test statistic distributions by method (Brodeur et al. 2020). IV (top-left) shows a pronounced rightward shift with bunching above z=1.96. DID shows a distinctive spike at z~3.5. RDD and RCT have smoother, more symmetric distributions --- consistent with less specification searching.

IV has the most suspicious distribution: the mass is shifted rightward with visible bunching above the significance threshold. This is consistent with the hypothesis that recycled instruments — which have known “expected results” — invite more specification searching than novel identification strategies.

Data Sources

Status

This is exploratory work (March 2026) for an ongoing research project:

  • Paper 1: “IV in Labour Economics” — subsample meta-analysis for Journal of Economic Surveys
  • Paper 2: “The Identification Zoo” — full cross-field meta-analysis for JEL / JEP / REStat

Analysis code: iv_meta_analysis.py

Ravikiran Naik, FLAME University
